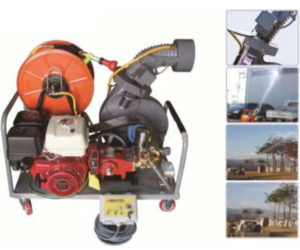

Tech Fog 12001
Products Features:
Ultra Low Volume aerosol sprayer,Powerful motor Honda GX 390,All formulation controls at operators hand,5~50 micron droplets,Tornado action nozzle.
Technical Data
| Technical | Description/Details |
| Specification | 1. Dimension : (LxBxH) 1100x700x900 mm 2. Sprayer Nozzle: 4 Nozzle spray hole with spray gun 3. Moving Caster 4. Control Box 5. Spray Hole 180° Revolve (left & Right) (Up & Down) 90 ? Move 6. Spray System Automatic on and off |
| Engine | 1.Type Honda – GX 390 2.Engine Output – 11.7HP/8.7kw/3,600 Rpm 3.Ignition type – CDI 4.Starting type – Recoil starter or Electric Starter 5.Fuel tank Capacity – 6.1 Liters 6.Fuel Consumption – 3.5 L/Hr – 3,600 rpm |
| Air Blower | 1.Revolutions : 3,600 RPM 2.Discharge capacity : 30 M3/ Min 3.Pressure : 380 Kg/cm2 |
| Sprayer | 1.Automatic pressure control system 50A 2.Pressure: 30~50 kg/cm2 3.Discharge capacity: Normal 42 L/min, Max. 66 L/min. 4.Revolutions : 700~1,200 RPM |
